Reducing Heat Loss

The UK is a heating nation, spending more to keep our buildings warm, than cool

Effective use of blinds and shutters can help to maximise solar gain and preserve wanted heat thereby reducing heating costs.

The Problem

Glazing is typically one of the weakest elements of all building components. Its properties are static whereas the position of the sun and weather conditions vary continuously.

Modern glazing with low-e coatings are more effective than uncoated glazing but even with the best U-values of around 1.0 they are still about a quarter of the insulation afforded by a wall.

Allowing offices and other buildings to cool down at night when unoccupied requires more energy to re-heat the building ready for the following day.

The Evidence

Operative temperatures that are too low have an impact on manual tasks due to reduced dexterity of hands and sensitivity to draughts.

Poorly insulated windows and glazing can result in local discomfort due to non-uniform thermal radiation known as asymmetric plane radiant temperature. For example the perimeter of the building experiences a different temperature range to the rest of the building. This would be particularly true with older glazing as the heat loss will be more significant.

Typical U-values of glazing are:

Single glazing = 5.8W/m2K
Clear double glazing = 2.9W/m2K
Clear double glazing with low-e coating = 1.0W/m2K

The Solution

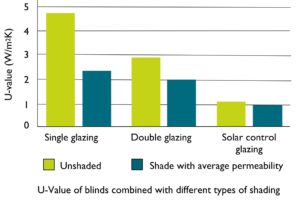

Blinds and Shutters will always improve the insulation properties of glazing. The benefit will obviously be greater with older glass types but even the best heat retention glazing can see improvements in U-value of more than 10% with the correct shading products as shown in the graph below.

Graph

Blinds with reflective coatings and those using materials with air pockets such as honeycomb fabrics tend to have lower U-values. Wooden internal shutters and external insulated shutters are other heat retaining products.

Key Measure

The key measure is U-value and this can be calculated using European standards. The European Solar Shading Database (ES-SDA) is free to access and shows all the performance data, including U-value of a wide range of shading materials.

We are members of the BBSA and this article is drawn from the BBSA’s Shade IT website:
